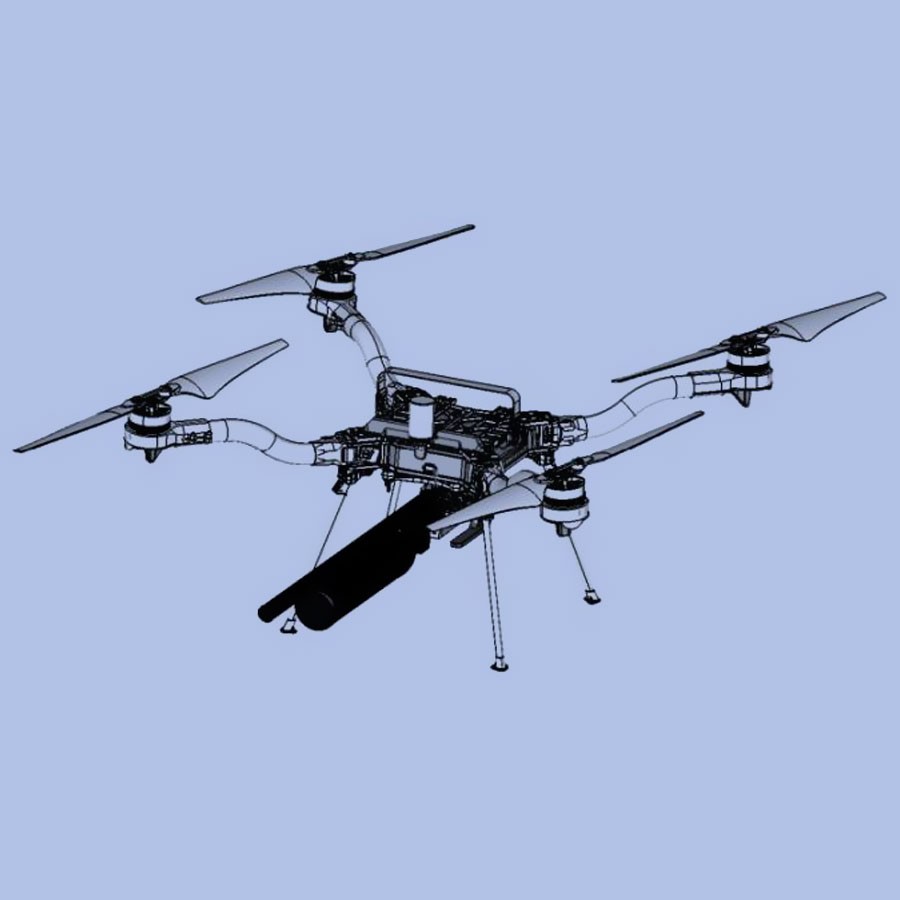

Four Arms Drone System Design

Four Arms Drone System Design
Four Arms Drone System Design
  • Max. 14.5 mm caliber it has the capacity of particle explosion core ejection
  • 60 pieces of 14.5 mm caliber at one time. Load take off.
  • The effective range from the target is for 14.5 mm caliver, max. 1.200 meters.
  • Being the only one in the world with its invisibility feature due to its ability to shoot at the target from a distance.
  • The system has a silent operation feature.
  • It is unique in the world with its ability to shoot with 14.5 mm caliver with the difference of its firing system.
  • It's hit rate is very high due to the lightness of the weapon system.
  • Autonomous return to home when datalink is lost.
  • Real-time video viewing and recording.



Four Arms Drone System Design
Four Arms Drone System Design
Four Arms Drone System Design
Four Arms Drone System Design
Four Arms Drone System Design
Four Arms Drone System Design
Four Arms Drone System Design
Four Arms Drone System Design

Specifications:

Model: CM-4 CM-4H
Dimensions: 1300mm x 1500mm x 600mm 1400mm x 1500 x 600mm
Endurance: ≤45min  ≤60min
Maximum Load: ≤25 kg ≤30 kg
Flight Radius: ≤10 km ≤12 km
Working Temperature: -40°~+65° -40°~+65°
Disassembling Time: ≤5 min ≤5 min
Power Battery: 22000 mAh 28000 mAh
Flight Speed: ≤18 m/s ≤20 m/s
Altitude: ≤3500 m ≤4000 m
Wind Resistance Level 7 Level 7
Sand Dust IP65 IP65
Rain Level Moderate Rain Moderate Rain



Standart Function:

  • Intelligent Flight: Ground imitation fligt, pointing flight, pointing task, breakpoint continued flight, AB point one-key take-off and landing, one-key return, route planning, multi-task management
  • Safety Protection: Anti-elecromagnetic interference, Triple redudancy protection, Low electricity return, Low voltage return, Propeller broke protect
  • Omnidirectional Obstacle: 720° obstacle avoidance, sensing range ≤200 meters
  • Satellite Positioning: Beidou, GPS, GLONASS, Autonomous Navigation, RTK Samsung seven band
  • Positioning Accurary: Horizontal :±0.02m  Vertical: ±0.05m
  • Body Material: Carbon fiber composite material + Aviation Aluminum
